SPECIFICATIONS
Total Length: 34" or 30"
Total Weight: 8lbs +/- 2oz
Face to Pick: 9.75"
Head Thickness: 1"
Testing and analysis conducted by Search & Destroy Training & Tools, LLC. Click here to read the full report.

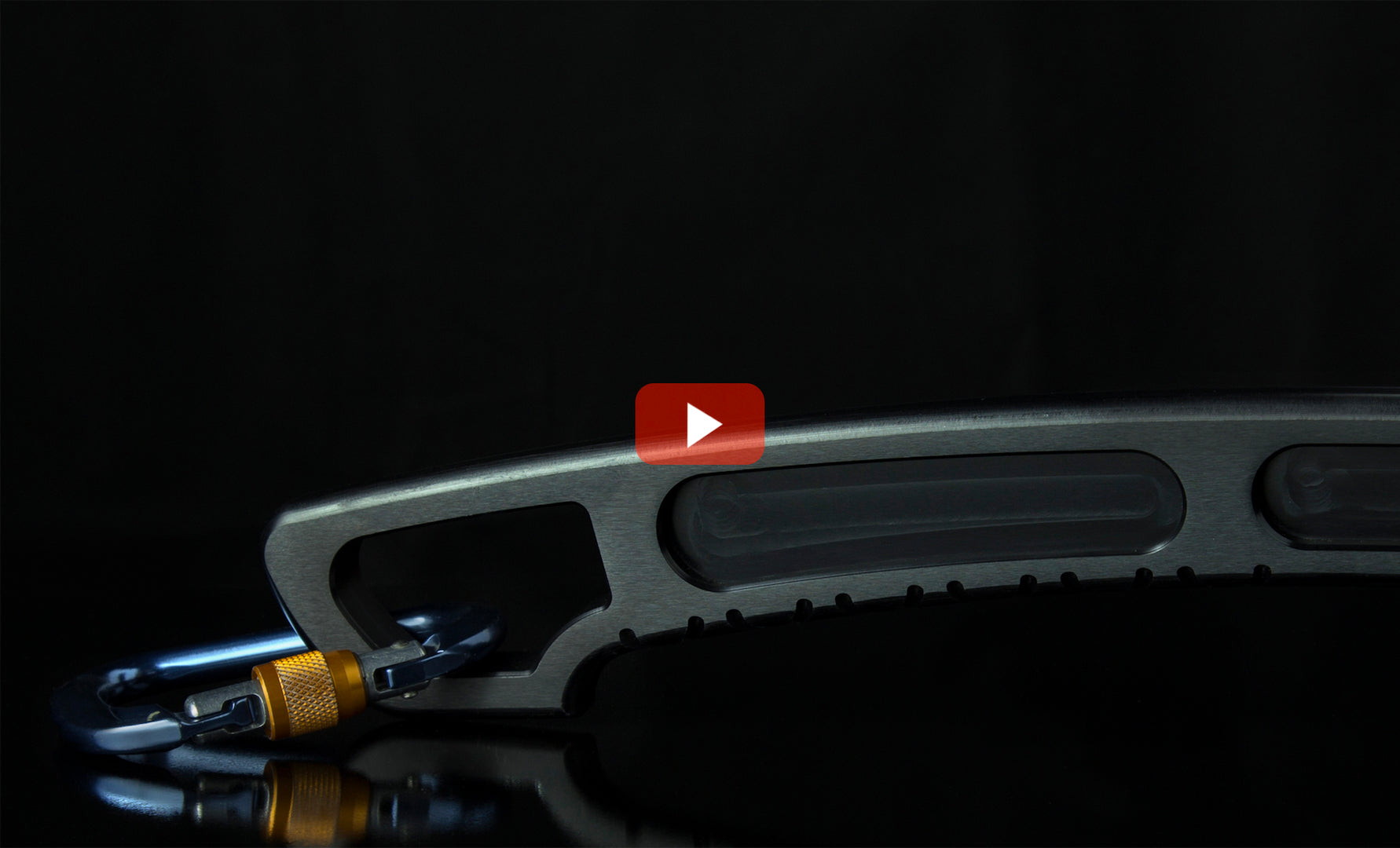

RAPPELLING
The base of the BADAXX blade has been engineered to create an emergency anchor point for first responders who find themselves trapped above the ground floor of any structure. The anchor point can latch onto, or be driven into, most building materials. A safety rope can easily be attached to the hole provided at the end of the handle to allow you to rappel to safety. The BADAXX tool allows you to complete many challenging tasks while providing you peace of mind, knowing you have a rock solid anchor point anywhere, and anytime you need it.

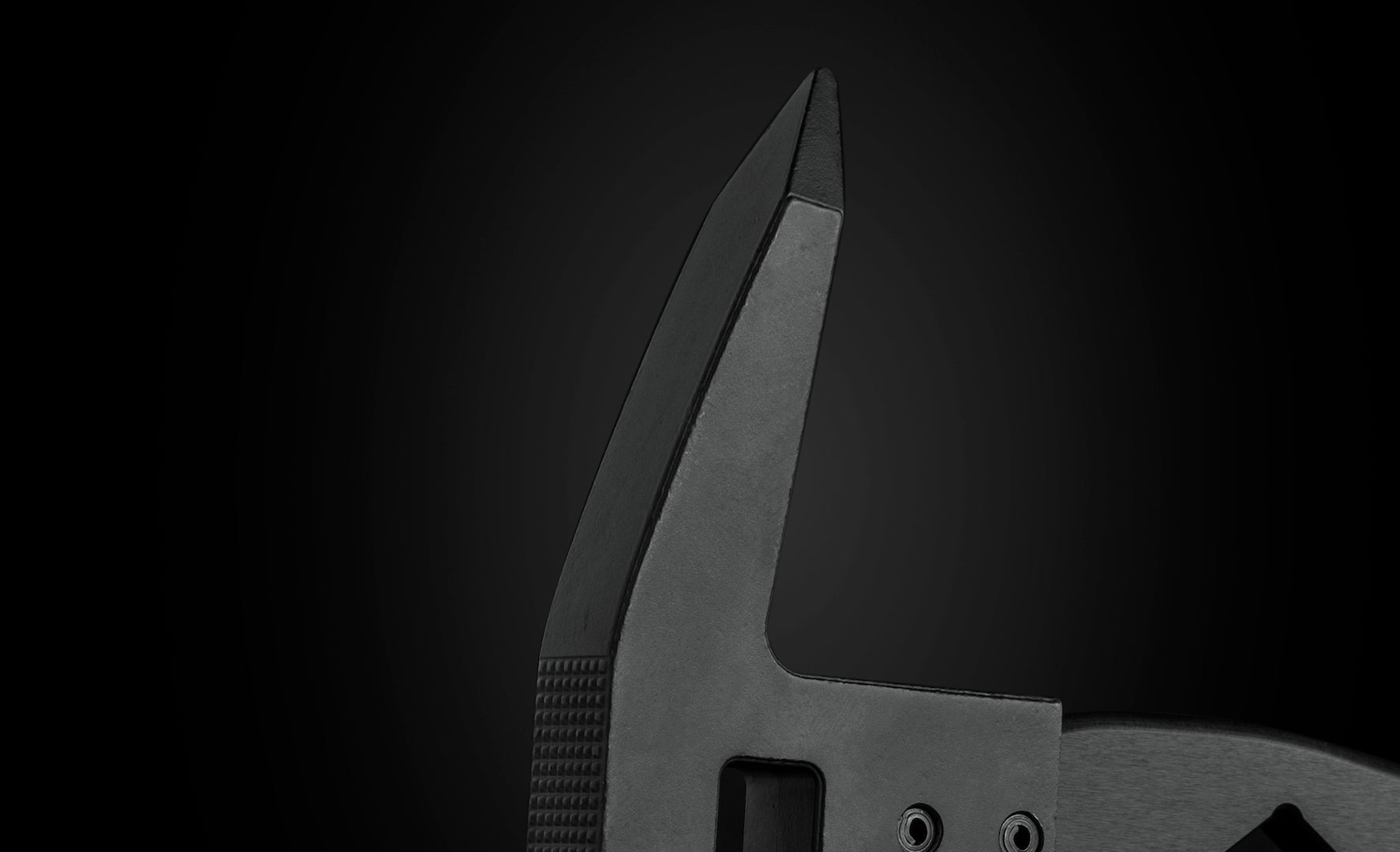

Pick
Made from hardened 4150 tool steel, the 4.5” pick can quickly be driven into most materials, providing an immediate extra foot hold during emergency operations. We designed our pick to have a consistent width throughout its length. By not having the entire pick tapered like a wedge, we have avoided the wobbly, unstable foot hold most commonly found with the traditional pick head axe. To increase your safety we have added knurling to the top surface of the head to prevent your foot from slipping. With the tapered end and angle of the pick, we have designed it to be very efficient at overhaul while also allowing it to function as a fulcrum for prying and lifting.

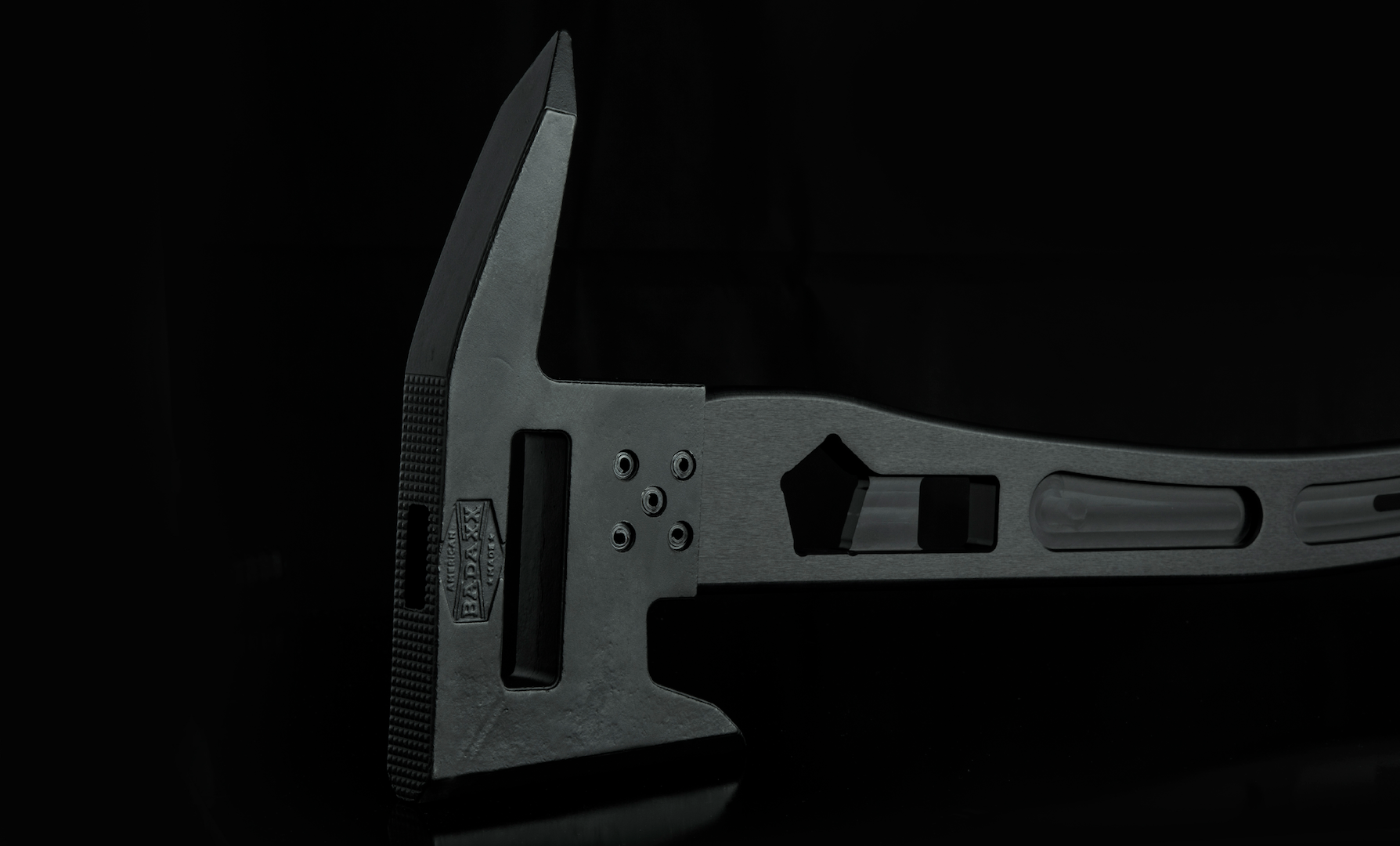

HEAD
The head of the BADAXX tool is created through the process of investment casting, otherwise known as lost wax casting. We start with a die that has wax injected into it to form the shape of the head. The wax head is then coated with a series of porcelain layers to create a mold of the head. The mold is then heated to melt and remove the wax and is finally filled with molten 4150 tool steel. Once cooled down, the porcelain is removed and we have a finished head.
The head of the BADAXX tool has been engineered to apply maximum impact force to the striking surface while the beveled edges force material away from the blade. The result is an effective method of breaking through material without the blade being pinched or jammed. This allows for the efficient completion of time-critical operations, while minimizing exertion, and preserving much needed energy. The face of the blade provides an effective striking surface when used with a Halligan style bar. The rectangular hole in the head is designed to receive a 2”-3” adz blade of a Halligan style bar. This design allows the handles to marry close together and can easily be grasped with one hand. The BADAXX tool and a Halligan style bar, affectionately known as the “irons”, are the perfect pair for any forcible entry job!

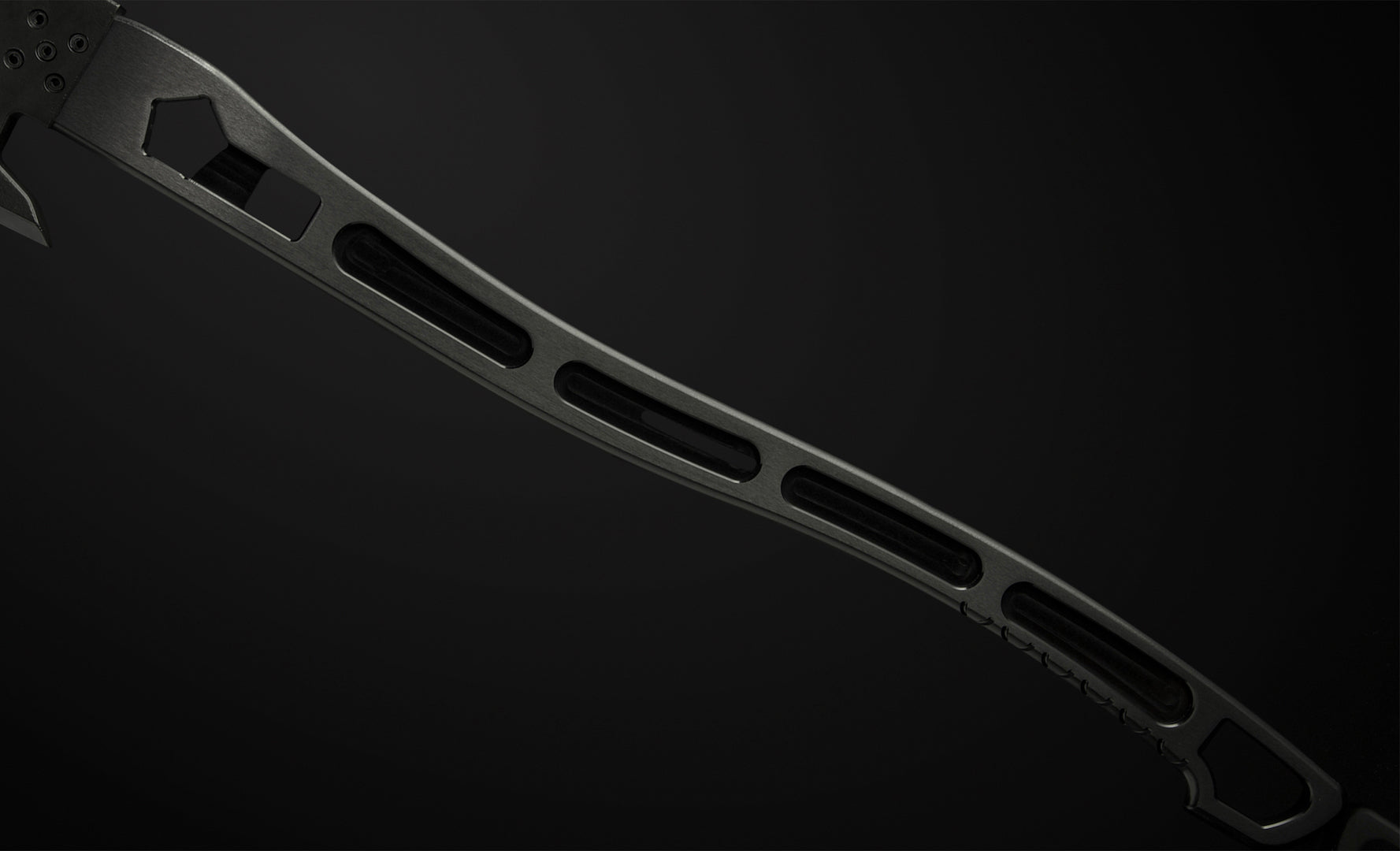

THE HANDLE
The handle is precision machined from a solid blank of Aerospace tempered aluminum; this is the toughest alloy of aluminum and is the same grade used in manufacturing commercial aircraft. We have chosen this alloy to allow extreme strength while keeping the weight down. We then treat the handle with an anodized finish to get the color you want and prevent oxidation.
The BADAXX handle is ergonomically shaped for a more natural swing. The hole provided at the end of the handle allows you to easily attach a safety rope for rappelling and bailout operations. The cross hatch pattern along with the hooked finger grab prevents the axe from slipping from your grasp.

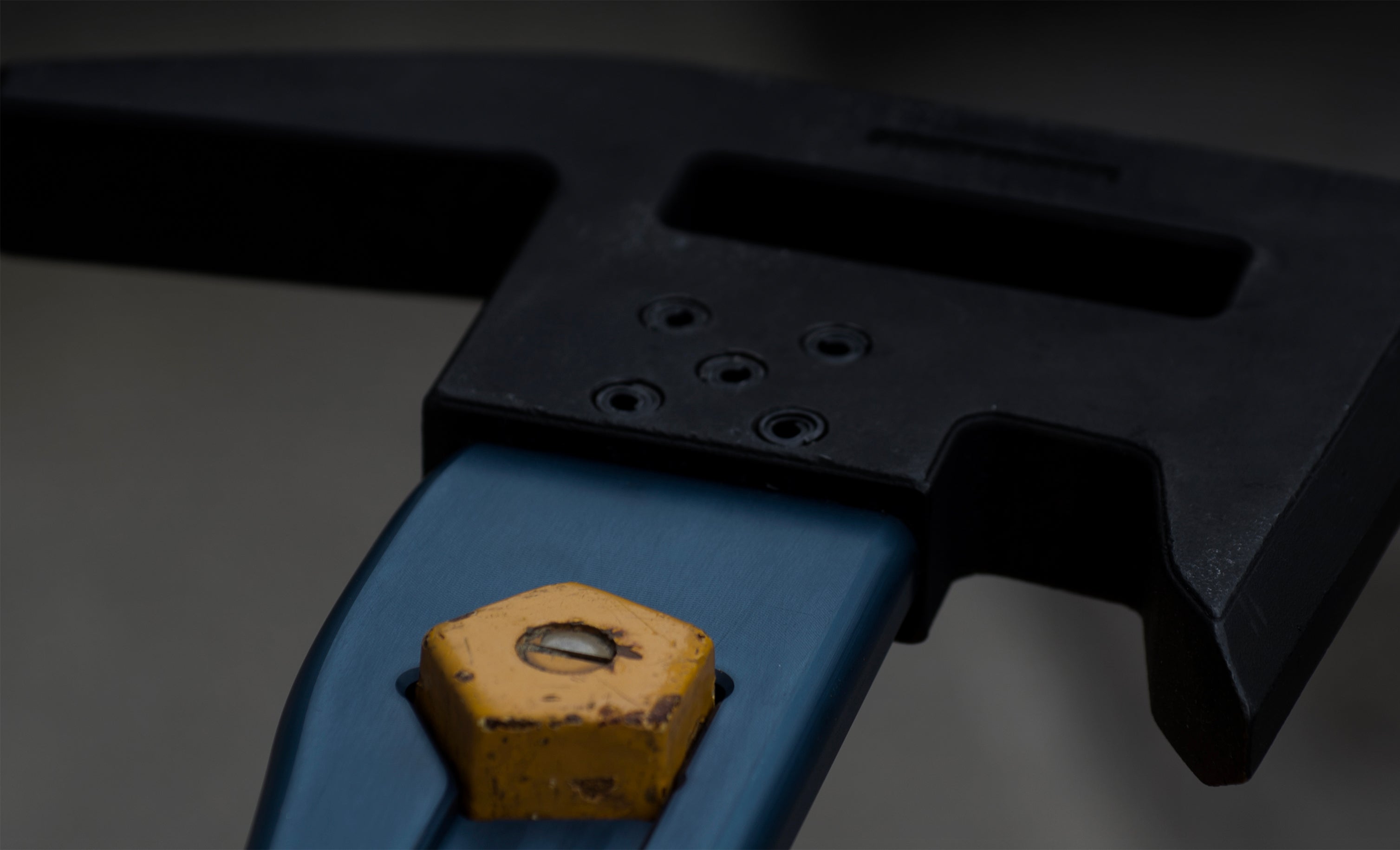

ADDITIONAL FEATURES
The handle has been machined to include two styles of hydrant wrenches necessary to quickly open and close standard fire hydrants. The top surface of the head also includes a pocket that will operate a standard shutoff valve for both water and gas meters.blade of a Halligan style bar. This design allows the handles to marry close together and can easily be grasped with one hand. The BADAXX tool and a Halligan style bar, affectionately known as the “irons”, are the perfect pair for any forcible entry job!
